SL1585 30V输入 输出可调 同步降压3A

DCDC 4V~30V降压3.3V3A电流同步降压IC

DCDC 4V~30V转5V同步降压芯片

DCDC 4V~30V降压12V同步降压电路

dcdc宽输入30V同步降压稳压电路

描述

The SL1585 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to achieve a 4A peak output current over a wide input supply range,

with excellent load and line regulation.

The SL1585 requires a minimal number of readily available, external components and is available in a space saving

ESOP8 package.

特点

• Wide 4V to 30V Operating Input Range

• 3A Continuous Output Current

• Fixed 500KHz Switching Frequency

• No Schottky Diode Required

• Short Protection with Hiccup-Mode

• Built-in Over Current Limit

• Built-in Over Voltage Protection

• Internal Soft start

• Output Adjustable from 0.925V

• Integrated internal compensation

• Thermal Shutdown

• Available in ESOP8 Package

• -40°C to +85°C Temperature Range

应用范围

• CCTV Camera

• Flat-Panel Television and Monitor

• Battery Charger

• Distributed Power Systems

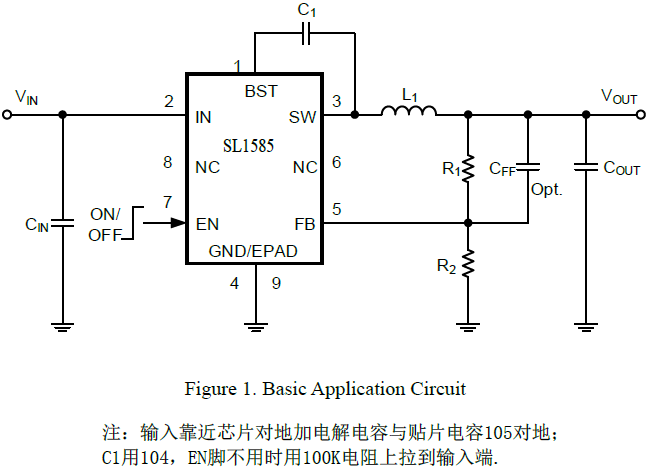

电路图
