SL3051
DC-DC降压恒压
型号:SL3051
封装:SOT23-5
输入范围:2.7V-5.5V
输出电压:ADJ
输出电流:1.2A
工作频率:1.5MHZ
驱动MOS管:内置
静态电流:40UA
关断电流:1uA
立即询价
封装:SOT23-5
输入范围:2.7V-5.5V
输出电压:ADJ
输出电流:1.2A
工作频率:1.5MHZ
驱动MOS管:内置
静态电流:40UA
关断电流:1uA
SL3051 1.5MHz, 5.5V,1.2A, High Efficiency Step-Down DC/DC Converter
General Description
SL3051 is a high-efficiency DC to DC step down switching regulator, capable of delivering up to 1.2A output current
The SL3051 operates in a wide range input voltage from 2.7V to 5.5V making the IC ideal for low voltage power
conversions. Running at a fixed frequency of 1.5MHz allows the use of small inductance value and low DCR
inductors, thereby achieving higher efficiency.
Features
Up to 1.2A Max Output Current
2.7V to 5.5V Input Voltage Range
Fixed 1.5MHz Switching Frequency r
Light Load Operation
100% Duty Operation
Internal Compensation
RoHS Compliant and Halogen Free
Applications
USB ports/Hubs
Hot Swaps
Cell phones
Tablet PC
Set Top Boxes

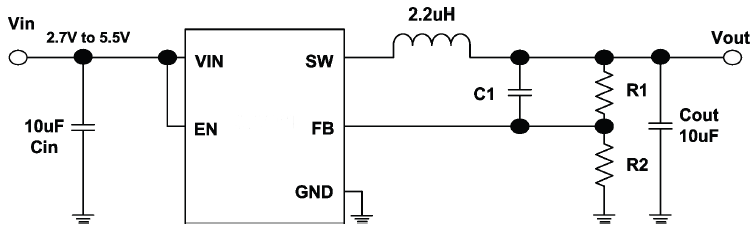

Typical Application
