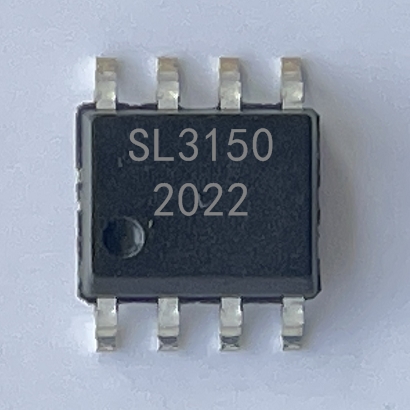

SL3150

SL3150

DC-DC降压恒压

型号:SL3150
封装:SOP7
输入范围:10V-150V
输出电压:固定5V
输出电流:0.4A
工作频率:120khz MAX
驱动MOS管:内置
静态电流:700uA
立即询价

谈球吧 电话:0755-26786865

SL3150 15V-150V 输出固定5V0.5A


GENERAL DESCRIPTION

SL3150 is a Buck regulator that provides accurate constant voltage (CV) regulation without opto-coupler.

It has an integrated 150V MOSFET to simplify the structure and reduce costs. These features make it an

ideal regulator for off-line low power applications, such as home appliances and standby  power.


SL3150 is a green -mode-operation regulator. Both the peak current and switching frequency decrease as the loaddecreases.

This feature provides excellent efficiency at light load, and improves the overall average efficiency.

SL3150 features various protections, including thermal shutdown (OTP), VCC under-voltage lockout (UVLO), overload protection (OLP),

short-circuit protection (SCP), and open loop protection.

SL3150 is offered in SOP7 package.


FEATURES

Primary-Side CV control.

Wide input range: 15V~150V

Integrated 150V/5.0Ω MOSFET and

current source

< 30mW no-load power consumption

Fixed 5.0V output voltage

Up to 400mA output Current

Low VCC Operating Current

Frequency foldback

Limited maximum frequency

Internally biased VCC

OTP, UVLO, OLP, SCP, Open loop


APPLICATIONS

Standby power

E-bike applications

Industrial controls

Consumer electronics

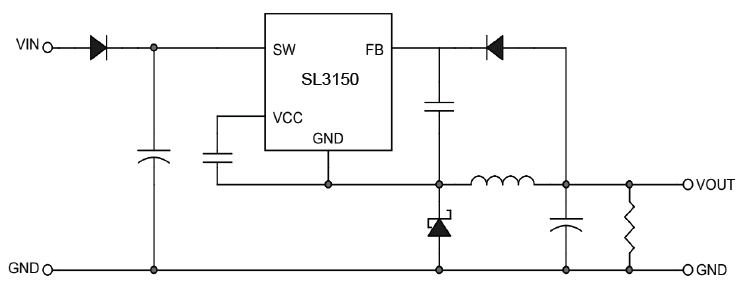

TYPICAL APPLICATION

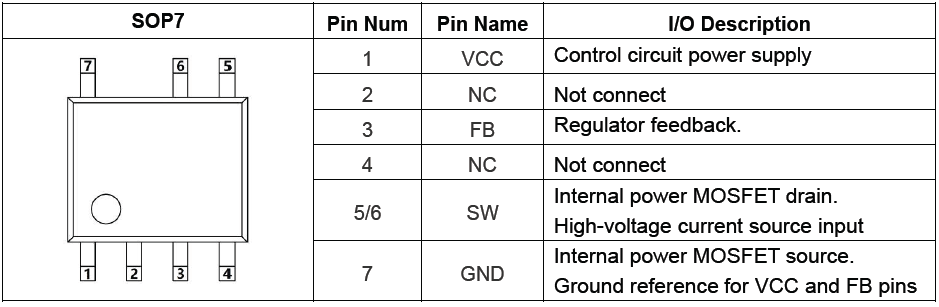

PIN CONFIGURATION
