dc-dc4.5V-36V转28V、15V、12V、5V、3.3V2A同步降压转换器

dcdc4.5V-36V转28V2A电源芯片

dcdc4.5V-36V转15V2A恒压IC

dcdc4.5V-36V转12V2A降压IC

dcdc4.5V-36V转5V2A电源IC

dcdc4.5V-36V转3.3V2A稳压芯片

General Description

The SL1588H a low EMI signature, asynchronous, step-down, switch-mode converter with internal power MOSFETs.

It offers a very compact solution to provide a 2A continuous current over a wide input supply range, with excellent load

and line regulation. S L1588H achieves low EMI signature with well controlled switching edges. Fault condition

protection includes programmable-output over-voltage protection, Constant on time Mode, and thermal shutdown.

SL1588H requires a minimal number of readily available standard external components. It is available in SOT23-6

package.

Features

• Wide 4.5V to 36V Operating Input Range

• 2.0A Continuous Output Current

• 500KHz Switching Frequency

• Short Protection with Hiccup-Mode

• Built-in Over Current Limit

• Programmable Output Over-Voltage Protection

• DCM Mode for High Efficiency in Light Load

• Integrated internal Soft-Start

• 120/80mΩ Low RDS(ON) Internal MOSFETs

• Output Adjustable from 0.6V

• Low EMI Signature

• 99% Duty cycle

• Integrated internal compensation

• Thermal Shutdown

• Available in SOT23-6 Package

• Constant on time Mode

Applications

• Automotive Entertainment

• Wireless and DSL Modems

• Computer Entertainment

• Power Supply for Car Chargers

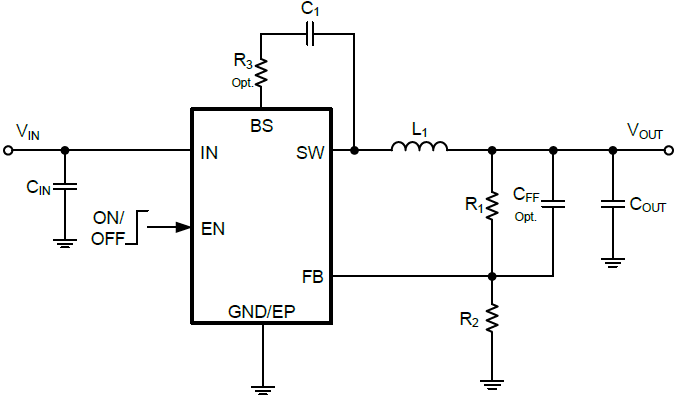

Typical Application Circuit
